Phenolic Resin

1.Introduction of Phenolic Resin

Phenolic resin is a versatile synthetic polymer derived from the reaction of phenol (or substituted phenol) with formaldehyde. It belongs to the class of thermosetting resins, meaning that once cured, it cannot be melted or reformed by heat. Phenolic resins are renowned for their exceptional heat resistance, mechanical strength, chemical resistance, and flame retardancy.

These resins find widespread applications across various industries due to their excellent properties. They are commonly used as adhesives, coatings, and molding compounds. In adhesive applications, phenolic resins provide strong bonds and are particularly favored in wood products, laminates, and automotive brake linings. As coatings, they offer protection against corrosion and abrasion in industries such as marine and automotive. In molding applications, phenolic resins are utilized to produce a wide range of components, including electrical insulators, circuit boards, and appliance parts.

The versatility and reliability of phenolic resins make them indispensable in numerous industrial and consumer products, contributing significantly to the advancement of various technologies and enhancing the performance and durability of engineered materials.

2.Properties of Phenolic Resin

Phenolic resin is a versatile polymer known for its wide range of applications and unique physical properties.

2.1.Appearance.

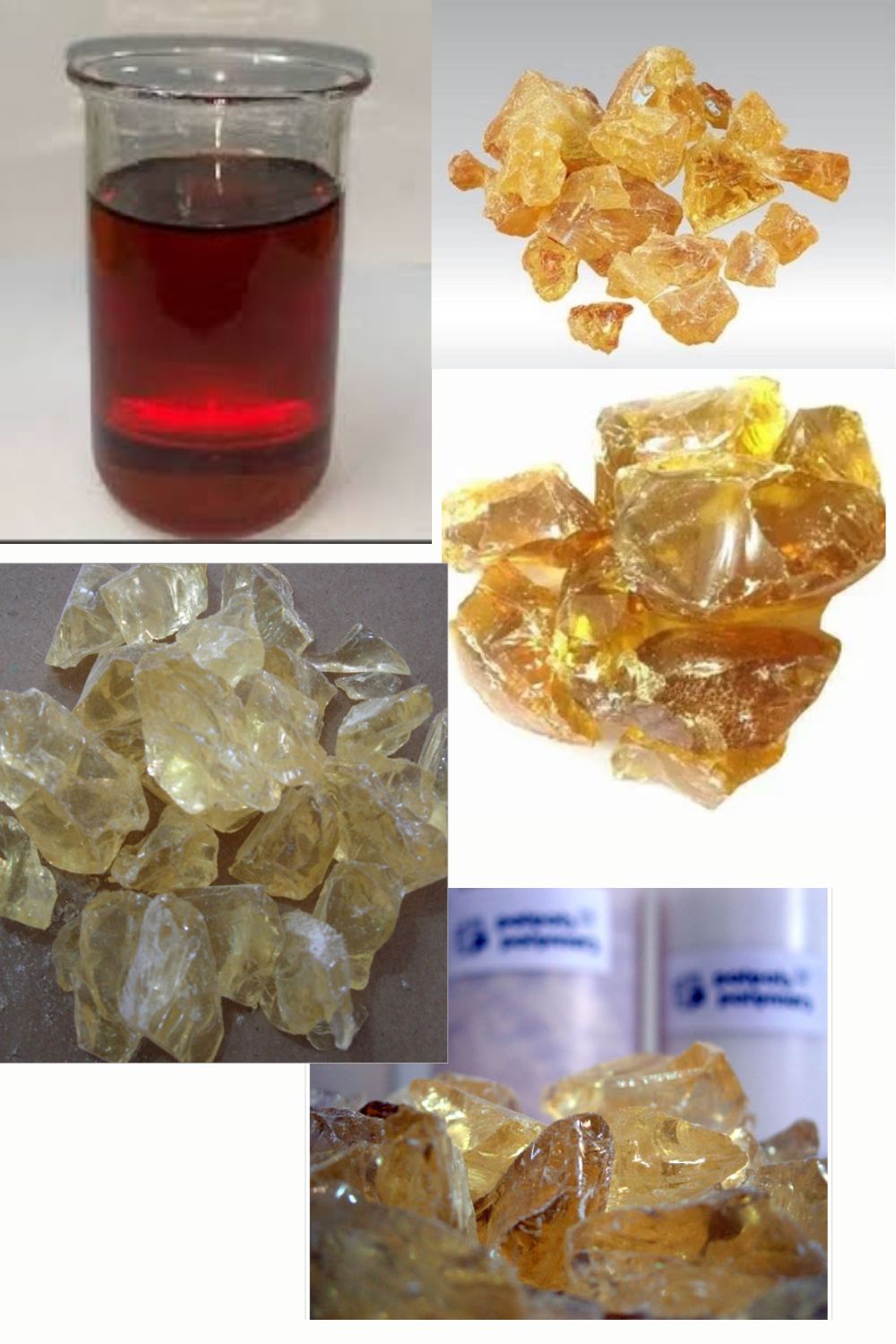

Phenolic resin typically appears in the form of a solid, amber-colored material. It can vary in transparency, from transparent to opaque, depending on its composition and curing process.

2.2.Density.

The density of phenolic resin generally ranges from 1.2 to 1.4 g/cm³, making it relatively lightweight compared to many other materials.

2.3.Strength and Hardness.

Phenolic resin exhibits high strength and hardness, making it suitable for use in applications where durability and resistance to wear are important. It has excellent mechanical properties, including high tensile strength and impact resistance.

2.4.Thermal Stability.

Phenolic resin is known for its exceptional thermal stability. It can withstand high temperatures without significant degradation, making it suitable for use in applications where heat resistance is required.

2.5.Chemical Resistance.

Phenolic resin has good resistance to many chemicals, including acids, bases, and solvents. This property makes it suitable for use in corrosive environments.

2.6.Electrical Insulation.

Phenolic resin is an excellent electrical insulator, making it useful in electrical and electronic applications where insulation is required.

2.7.Flammability.

While phenolic resin itself is combustible, it can be formulated to have fire-retardant properties. Properly formulated phenolic resins can meet various flammability standards, making them suitable for use in fire-resistant applications.

2.8.Water Resistance.

Phenolic resin generally exhibits good resistance to water and moisture. However, prolonged exposure to moisture can lead to degradation over time.

2.9.Machinability.

Phenolic resin can be machined easily using conventional machining techniques, such as milling, turning, and drilling, allowing for the fabrication of complex shapes and components.



                                         Viscosity                                        150 – 250

                                        Temperature                                 10 – 20°C

                                        Free phenol                                    6 max. (%)

                                        Free formalin                                3 max.   (%)

                                       Specific gravity                              1.12 – 1.16

                                       Total solid content                        60 – 65for ½ hr. (%)

3.Industrial Uses of Phenolic Resin

Phenolic resin, a versatile synthetic polymer, finds extensive industrial applications due to its remarkable properties. Here are some of its key uses:

3.1.Adhesives.

Phenolic resin serves as a primary component in adhesive formulations. Its excellent bonding strength, heat resistance, and durability make it ideal for applications in woodworking, laminates, and composite materials.

3.2.Coatings.

The chemical resistance and heat stability of phenolic resin make it a valuable ingredient in protective coatings for various substrates, including metal, concrete, and wood. These coatings provide corrosion protection and thermal insulation in harsh environments.

3.3.Molded Products.

Phenolic resins are commonly used in molding applications, such as in the production of electrical components, automotive parts, and consumer goods. Its low cost, dimensional stability, and flame-retardant properties make it a preferred choice for these applications.

3.4.Insulation.

Phenolic resin-based materials are widely utilized as insulation components in electrical systems and appliances. These materials offer excellent electrical insulation properties, as well as resistance to high temperatures and fire.

3.5.Abrasives.

In the manufacturing of abrasive products like grinding wheels and coated abrasives, phenolic resin acts as a binder, holding abrasive particles together. Its high temperature resistance ensures the stability of the abrasive product during grinding operations.

3.6.Laminates.

Phenolic resin is a key ingredient in the production of laminates, such as those used in countertops, tabletops, and electrical insulating materials. Laminates made from phenolic resin offer superior strength, impact resistance, and chemical stability.

3.7.Foundry Applications.

In foundry processes, phenolic resin is utilized as a binder in sand casting molds and cores. Its ability to cure rapidly at room temperature, coupled with good sand flowability, facilitates the production of complex metal castings.

4.Advantages of Phenolic Resin

Phenolic resin offers several advantages in various applications:

4.1.High Temperature Resistance.

Phenolic resin can withstand high temperatures without losing its structural integrity, making it ideal for use in applications where heat resistance is crucial, such as in automotive components, aerospace parts, and electrical insulation.

4.2.Chemical Resistance.

It is highly resistant to many chemicals, including acids, alkalis, and solvents, making it suitable for use in environments where exposure to harsh chemicals is a concern, such as in laboratory equipment and chemical processing industries.

4.3.Fire Retardant Properties.

Phenolic resin has inherent fire retardant properties, making it an excellent choice for applications where fire safety is paramount, such as in construction materials, aerospace components, and electrical insulators.

4.4.Mechanical Strength.

It exhibits excellent mechanical strength and dimensional stability, making it suitable for applications requiring load-bearing capacity and durability, such as in structural components, gears, and bearings.

4.5.Electrical Insulation Properties.

Phenolic resin has excellent electrical insulation properties, making it ideal for use in electrical and electronic applications, including circuit boards, insulating materials, and electrical connectors.

4.6.Low Smoke and Toxic Gas Emission.

In the event of fire, phenolic resin typically produces low smoke and toxic gas emissions, enhancing safety in enclosed environments.

4.7.Cost-Effective.

Phenolic resin is often more cost-effective compared to alternative materials with similar properties, making it a preferred choice for many industrial applications.

4.8.Ease of Processing.

It can be easily molded into complex shapes using various techniques such as compression molding, injection molding, and transfer molding, offering versatility in manufacturing processes.

5.Manufacturing Process of Phenolic Resin

Here some  typical manufacturing process.

5.1.Raw Material Preparation.

The primary raw materials for phenolic resin production are phenol and formaldehyde. Phenol is usually derived from crude oil, while formaldehyde is commonly produced from methanol. Other additives and catalysts may also be included depending on the desired properties of the final resin.

5.2.Condensation Reaction.

The manufacturing process begins with the condensation reaction between phenol and formaldehyde. This reaction is typically catalyzed by either an acidic or basic catalyst. The reaction forms a mixture of oligomers with varying degrees of polymerization.

5.3.Polymerization.

The oligomeric mixture undergoes further polymerization to form high molecular weight polymers. This step is often carried out under controlled temperature and pressure conditions to optimize the properties of the resin.

5.4.Heat Treatment.

The resulting polymer is then subjected to heat treatment to promote cross-linking and further improve its properties. This step is crucial for enhancing the thermal stability and mechanical strength of the phenolic resin.

5.5.Cooling and Solidification.

After the desired level of polymerization and cross-linking is achieved, the resin is cooled and solidified into its final form. This may involve various cooling methods such as air cooling or water quenching, depending on the specific application requirements.

5.6.Formulation and Packaging.

Depending on the intended application, the phenolic resin may undergo additional formulation steps to incorporate additives such as fillers, pigments, or plasticizers to enhance specific properties. The resin is then packaged into containers suitable for storage and transportation.

5.7.Quality Control.

Throughout the manufacturing process, quality control measures are implemented to ensure the consistency and performance of the phenolic resin. This may involve testing the resin for various properties such as viscosity, curing time, and mechanical strength.

5.8.Storage and Distribution.

The final packaged phenolic resin is stored under appropriate conditions to maintain its stability and quality. It is then distributed to customers for use in various industrial applications, such as in the production of laminates, adhesives, friction materials, and insulation products.
